REMOTE MONITORING SYSTEM (RMS)

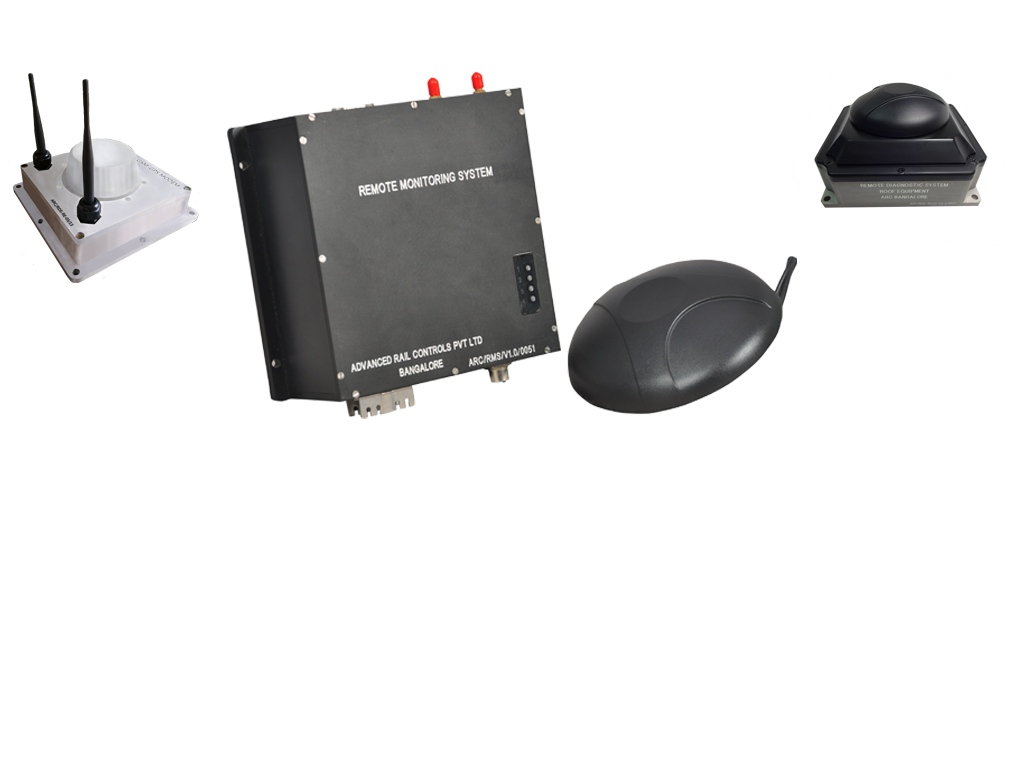

The remote monitoring & diagnostic system collects the status and faults developed in a running locomotive and transmits to the base station server on a real time basis on a wireless network. The equipment continuously polls the internal status of the locomotive and upon generation of any faults or system generated alerts, the same is captured and sent to a base server. The equipment is MVB based which gets connected to the WAP5/WAP7/WAG9 class of locomotives running in Indian Railways. The function of the equipment can be extended to cater to any type of rolling stock. There is an associated roof mounted unit which houses multiple modems and GPS receiver. Many process variables of the locomotive can be captured through MVB and transmitted to the base station.
Check Loco status using WEB or APP
Key Features
![Remote Mnitoring System](assets\img\product/sub/rms/trainpath.gif)
- Enables real time viewing of locomotive health over the internet.
- Facility for real time upload of locomotive fault messages and consolidates on a global database which can be analysed and viewed over the internet.
- Loco equipment collects loco status over MVB and transmits to the base server along with GPS position over GSM networks.
- Base server consolidates the data, analyses and provides user interface for viewing on the internet.
- Multiple pre defined screens for viewing, analysis and data refresh rate of 30 Seconds.
- Online charts for selected variables.
- SMS alerts during fault and email alerts weekly.
- Roof equipment (Antenna) is IP67 roof mounted.
- Android APP available.
- IEC-60571 compliant.
Screens Details
1. HOME PAGE

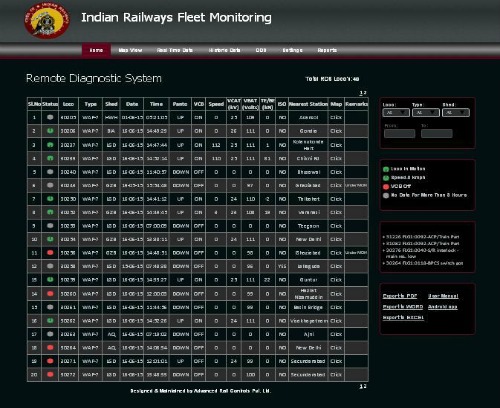

Displays the real time status of locomotive. Real time parameters include Loco number, type of loco, shed, date, time, speed, panto, vcb, isolation, nearest station and so on. Individual loco position can be viewed in google maps and loco,type or shed can be filtered to view individual loco details. Each locomotive is provided a status to indicate if loco is in motion, speed is 0 kmph, vcb is ON/OFF or if no data available from the past 3 hours along with a view of latest 5 faults occurred. Locomotive details can be exported to either word, pdf or excel. Links are provided to download the user manual and to install the Remote Diagnostic System mobile app.
2. MAP

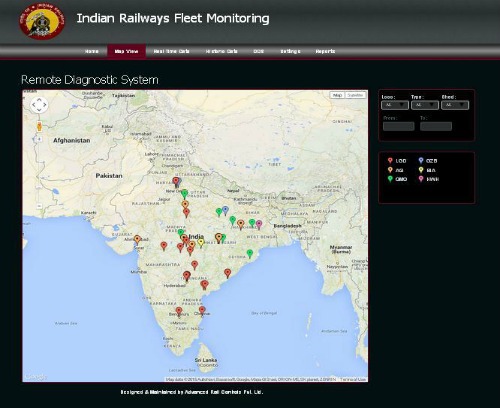

Provides a view of locomotive positions in the google maps. Each of it is indicated with different markers to specify which shed it belongs to and each marker provides information such as loco number, type, shed, speed and nearest station when clicked.
3. DDS

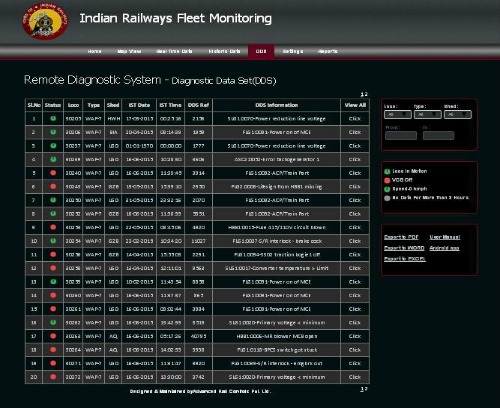

Faults occurred in locomotives are captured and displayed in DDS(Diagnostic Data Set) page along with DDS reference number. History of faults generated for individual loco can be viewed by clicking on the links provided. Also allows filtering loco, type or shed to view individual loco generated faults.
4. GRAPH

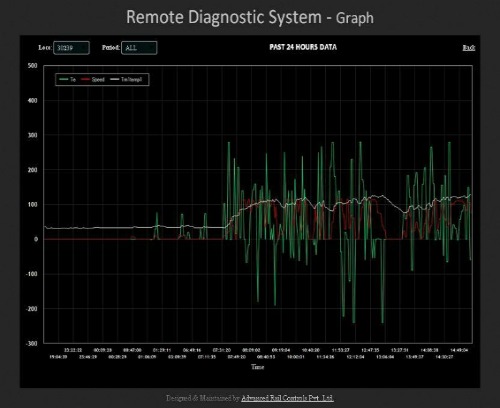

Each loco with a selected number of parameters along with time are displayed in a graphical view. Parameters include Traction/Braking Effect, speed, catenary voltage, temperatures and so on. Filters are provided to view graphs for different loco's for a specific period of time.
5. HISTORIC DATA

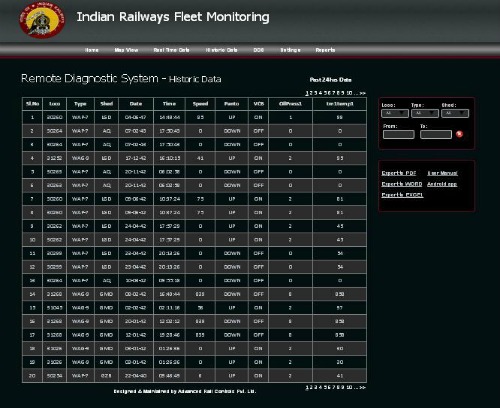

Displays the status of locomotives from past 6 months for selected number of Real Time Signals. Real Time Signals include speed, panto, vcb, vcat, primary current, oil pressure, oil temperature and so on. Loco,type or shed can be filtered to view past 6 months individual loco details or to view loco details over a period of time.
6. GLOBAL HITLIST

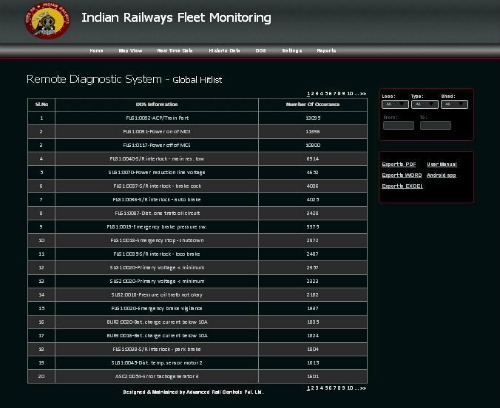

Maximum number of occurrences of a particular fault occurred in all the locomotives is displayed. Further filtration can be done to view maximum number of occurrences of a fault message in individual locomotive.
7. DDS ANALYSIS

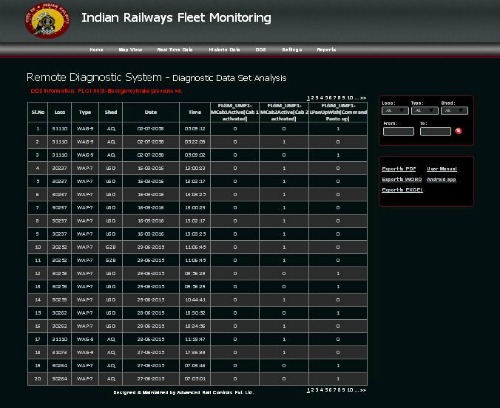

Displays Background Data Signal values related to the selected processor and DDS message. Processors include ASC1, ASC2, BUR1, BUR2, BUR3, DDA1, DDA2, FLG1, FLG2 and so on. Individual Loco Background Data Signal values can be filtered for a specific period of time.
8. TRAIN PATH

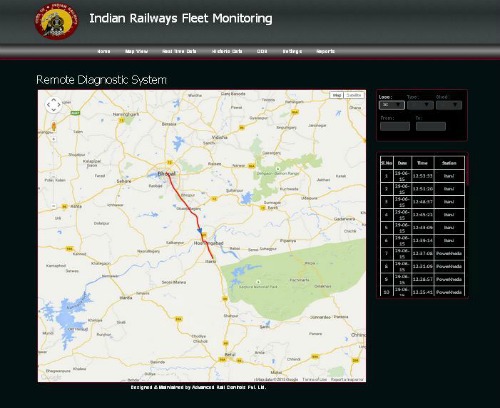

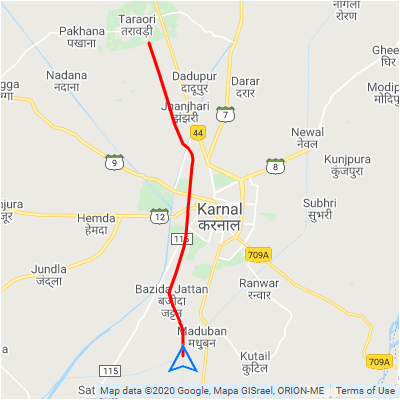

Provides a view of latest 50 positions the selected locomotive has traversed and displays the path in map.

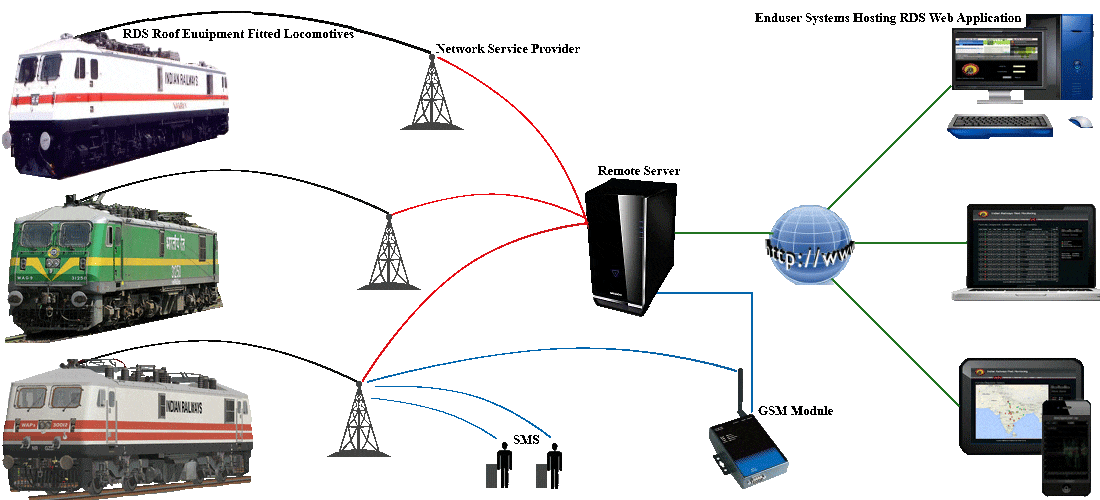

How System Works
![Pressure Sensor Working Diagram](assets\img\product/sub/rms/rdsworking.gif )
