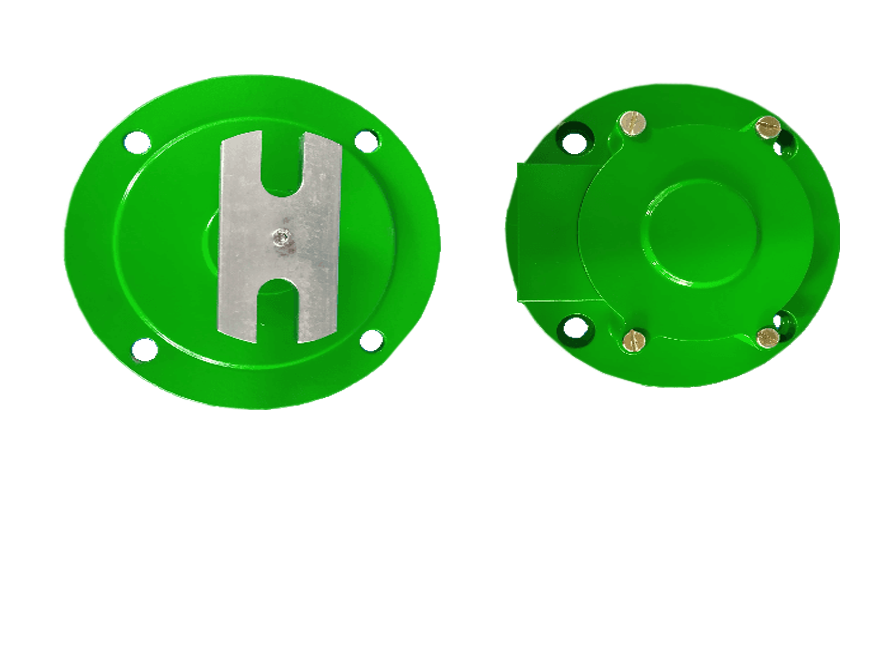

Speed Sensor for KAVACH
The speed sensors are composed of output signals, having each up to 90° phase-shifted square wave signals proportional to therotary speed. Speed sensors have sensing elements consisting of magnetic biased hall-effect semiconductors with static behavior, so that pulse generation is guaranteed down to a speed corresponding to a frequency of 0 Hz. The sensor is very compact, works with 8-32V DC supply.
Key Features
- Output signals of having phase shift of 90°.
- Sensor is fully protected with IP68 class as per IEC-60529.
- Works with 8-32V DC (Nominal voltage: 15V DC).
- Temperature range -30 °C to +70 °C.
- Frequency ranges from 0Hz to 20KHz.
- Product compliant with IEC-60571 :2012.
